DEFA SMART CHARGER
PROJECTA INTELLI START
BLUE SMART CHARGER
HAWKINS SMART CHARGER

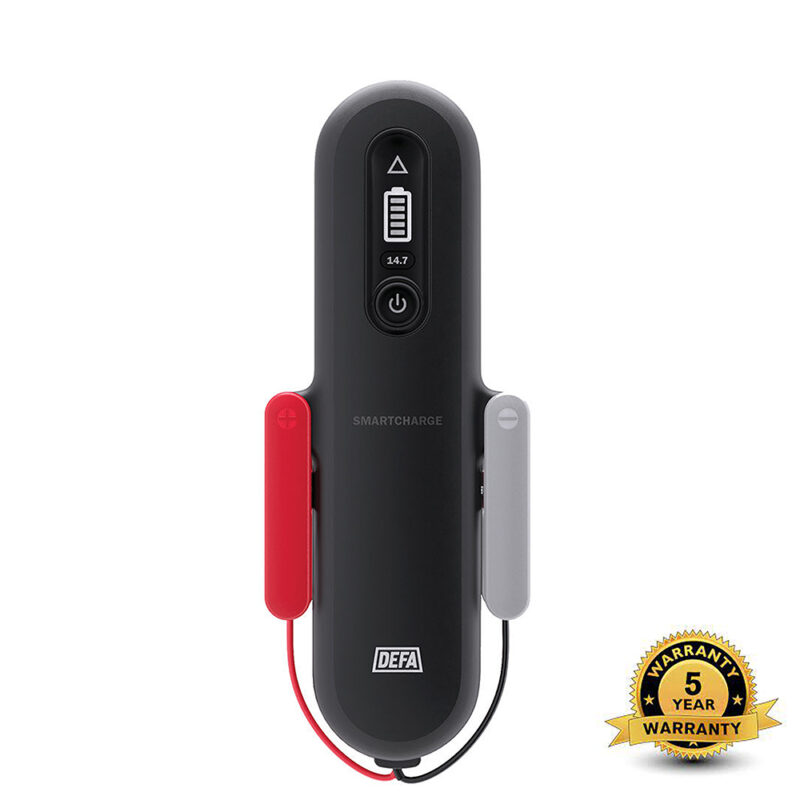

CHARGING SYSTEMS DEFA SMART CHARGER
12V 10A 230V Smartcharger portable battery charger designed to make charging simple and safe for everyone.
SmartCharge 10A is ideal for maintenance charging of any 12V lead/acid battery. It automatically adapts charging to the charging level, size and temperature of the battery. The display is intuitive, the cables and clamps are easy to fasten, making it compact and easy to store in your vehicle or garage
| Input Voltage | 230V AC, 50-60Hz |
| Max Charge Power | 175W |
| Inverse Current | < 1mA |
| Output Voltage | 14,4 / 14,7V DC |
| Operating Temperature | -40°C / +40°C |
| Cooling | Air |
| Type of Batteries | All types of lead/acid, AGM and GEL, open and closed. |
| Battery Capacity | 30-250Ah |
| IP Rating | IP65 |
| Isolation Class | II |
| Dimensions (mm) | 235(h) x 90(w) x 54(d) |
| Weight | 0,750kg |
| Certification(s) | EN60335-1, EN60355-2-29, EN 61204-3, EN61000-3-3, EN61000-3-2 |
DEFA AS conforms to the requirements of both ISO 9001- 2008, ISO 14001:2004 and OHSAS 18001:2007.
In addition, our engine heaters and cables conform to the requirements of ISO/TS 16949:2002.
▬
WARRANTY
5 Years
▬
FEATURES
• Simple and user-friendly interface and display.
• Automatically adapts charging to your battery.
• Built-in Power supply mode.
• Battery status monitoring in the display.
• Secured against short-circuiting and reverse polarity.
• Integrated cable storage solution.
• Will not overcharge your battery.
• Temperature-compensated charging.
▬
TEST AND WINS
Chargers in the SmartCharge family have been crowned the best car charger by the Finnish Motoring Magazine Moottori, and the best boat charger in a test published in several Nordic magazines, including the Finnish KM and the Norwegian Båtmagasinet. It has also received the Award for Design Excellence and the Design for All awards from Norwegian Design Council, now DOGA. SmartCharge received top marks for combining first-class results with a user-friendly interface and that makes charging batteries easy for all users.
▬
ACCESSORIES
Detachable accessories make SmartCharge even more user-friendly. Monitor your battery status or mount the charging cable to the battery permanently. See related products.

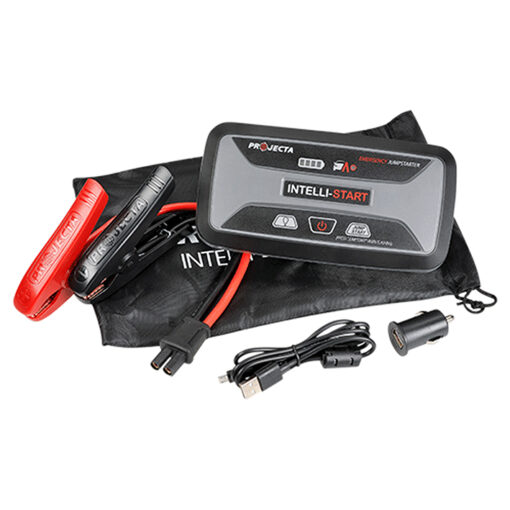

PROJECTA INTELLI-START 12V 1200A
Emergency Lithium Jump Starter Power Bank
1200A Peak Amps, 400A Clamp Power.
This powerful and compact lithium jump starter is capable of starting most petrol engines up to 7.0L* and diesel vehicles up to 4.5 litres.
- Rapid Recharge Technology (RRT)
• Lasts 4X longer* than other Jump Starters
• Ultra-safe Lithium Iron Phosphate (LiFePO₄) battery
• 90% lighter than equivalent lead acid Jump Starter
• Built in L.E.D flood light
• Power bank functionality
Application | Emergency |
Output | 12V |
Emergency Jumpstarts | 68 (Petrol) 34 (Diesel) |
Suitable Vehicles | Up to 7.0L petrol and up to 4.5L diesel |
Vehicle Voltage Range | 0 – 15.0V |
USB Output | 2.1A, 5.0V |
USB Low Voltage Disconnect | Battery voltage at 10.5 |
Battery Capacity | 12,000mAhr at 3.2V, 38.48wHr at 3.2V, 3.0Ahr at 12.8V |
Battery Chemistry | Lithium Iron Phosphate (LiFePO4) |
Theoretical Short Circuit Current | 1200A |
Battery Clamp Output | 400A |
Total Battery Cycles | 1800 |
Jump starter Leads Length | Positive 31.0cm, negative 27.0cm |
Jump starter Cable | 8mm² 8(AWG) |
Polarity Protection | MCU controlled with Electronic Switch Smart Module |
Recharging Cable | 1m long USB to Micro USB |
Recharging Cable Micro USB Charging Port | 2.1Amp micro USB charging port. 3rd party 10W 240VAC USB adaptors can be used (not supplied) |
DC Charging | 12V to 5V 2.1Amp USB charger (provided) |
Recharging Time | 8 hours |
Jump Starter Weight | 0.80 kg |
Jump Starter Dimensions (mm) | 50(h) x 197(l) x 95(w) |
Jump Starter Operating Temperature | -20°C to 60°C |
Jump Starter Storage Temperature | -0°C to 45°C |
Jump Starter Ingress Protection | IP53 (rain proof) with covers over the ports |

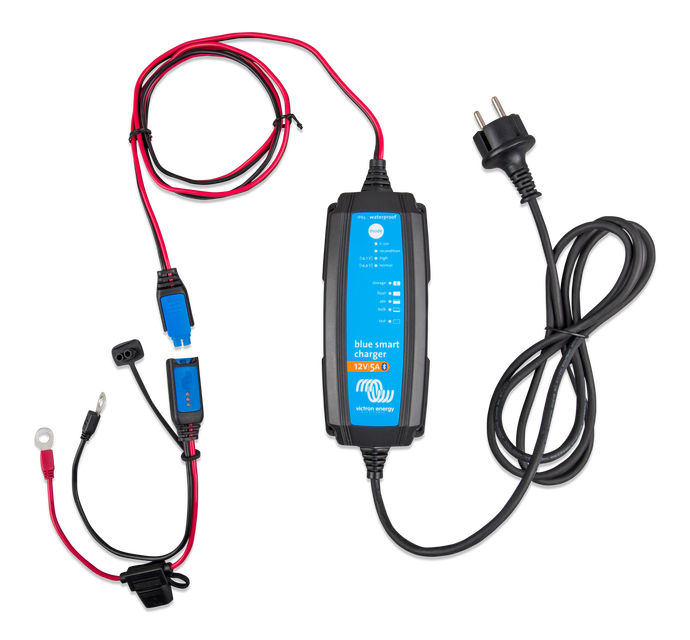

VICTRON BLUE SMART IP65 CHARGER
Emergency Lithium Jump Starter Power Bank
The Blue Smart IP65 Charger is the new professional battery charger with built-in Bluetooth. The Blue Smart IP65 Charger can be used on devices in your workshop and on motor vehicles, such as (classic) cars; motorbikes; boats and camper-vans.
New: IP65 6V/12V 1.1A
New: IP65 12/5 replaced by smaller equivalent model: IP65s 12/5
Models:6V/12V 1.1A, 12V 4/5/7/10/15/25A, 24V 5/8/13A
The battery is charged, smartly… to perfect condition
The seven-step charging algorithm gets the best out of your battery. The charger gives the battery the power it needs, maintains its health, ensures better performance… and a longer life.
Recovery of deeply-discharged ‘dead’ batteries
Unlike other brands, the Blue Smart IP65 Charger will attempt to recharge a deeply-discharged battery by force-feeding it with a low current. Normal charging will then be resumed as soon as there is sufficient voltage across the battery terminals.
Connect the battery with ease
The charger comes with both crocodile clips and M8 eyelets – making it easy to connect to the battery. If you wish, you can leave it permanently connected.
Check the status of your battery remotely
The Blue Smart IP65 is equipped with built-in Bluetooth, so the status of the charger and the battery can be checked on a smartphone, tablet or laptop. All settings of the charger can be configured with the VictronConnect app.

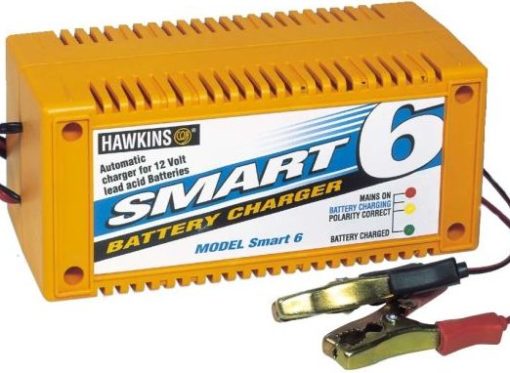

HAWKINS SMART / INTELLIGENT CHARGER
Emergency Lithium Jump Starter Power Bank
The Hawkins Smart 6 is suitable to keep batteries that are not in daily use, fully charged when one goes on holiday for a couple of weeks and the car is parked at home, connect the charger to the car battery and when you return, the battery will be fully charged. This prevents you from coming back to a dead battery and loosing the car computer programming. Can be connected many applications such as standby generators, gate motor batteries, electric fence and alarm batteries and the like to keep the battery fully charged ready for use.
The Hawkins Smart 6 battery charger is intended to meet market requirements as an affordable automatic battery charger in particular for general domestic use. The unit is made from high quality materials and components which conforms to IEC 335-2-29 on performance, safety, and electromagnetic interference. It is designed specifically for flooded lead acid batteries and sealed batteries.
The Hawkins Smart 6 is an automatic charger which delivers its rated current until the voltage on the battery reaches a preset level. The charger will then switch off, wait for the battery to drop down to the minimum set point, and then switch on again. The Smart 6 will cycle in this fashion indefinitely. The charger is electronically controlled and may be left permanently attached to the battery without danger, provided the battery’s condition is monitored on a regular basis.
Potential free clamps avoid sparking when connecting or removing the battery clamps in a potentially volatile environment. The charger is reverse polarity protected. The Smart range of chargers were designed in compliance with IEC 335-2-2 and has a two year limited warranty against defects in materials and workmanship
Smart chargers require a minimum voltage on the batteries before they will start charging, for a 12V battery it is 10V.
Charger is locally manufactured.
Conforms to SABS IEC 335-2-29
Input Voltage : 230Vac
Battery Voltage : 12Vdc
Charge Current : 3,2Adc
Dimensions : 190/95/85mm
Weight: 1,9Kg
NOTE – Wide range of Hawkins Smart chargers are available on request
